Universale strung economy cu patru bacuri Ø 80-100-125-160 mm, Wabeco
933,81 RON
Costurile de livrare nu sunt incluse, dar la comenzi peste 350 lei transportul este gratuit.
Descriere

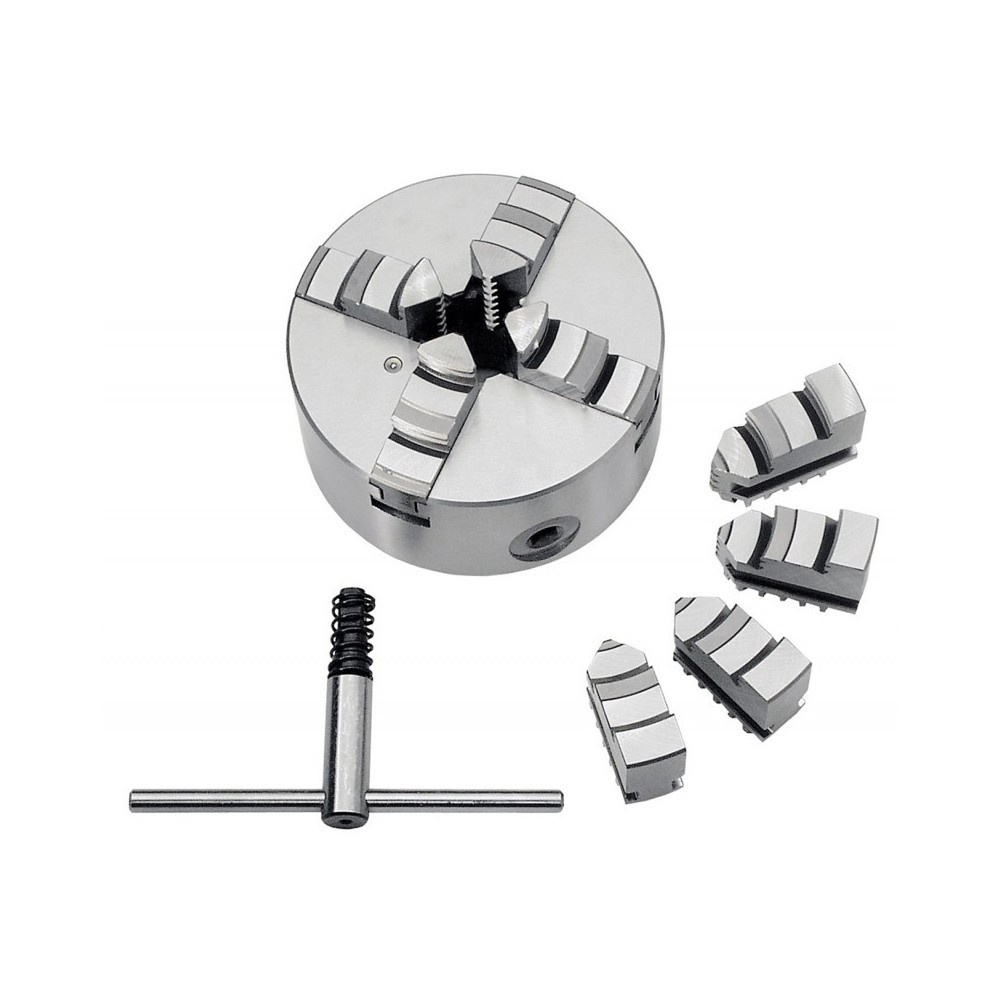

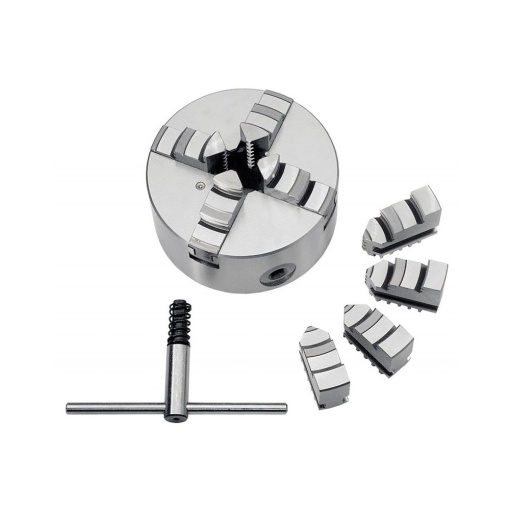

Universal strung cu 4 bacuri
– prindere concentrica, fara flansa de montaj
– include: bacuri strunjire si gaurire, cheie si suruburi strangere (de precizie cu certificate de testare)
Detalii tehnice 10729
| Lathe chuck total Ø | 100 mm |
| Clamping Ø | 5.5 - 83 mm |
| max. speed | 3500 rpm |
| Bore | 22 mm |
| cylindrical inside diameter | 70 mm |

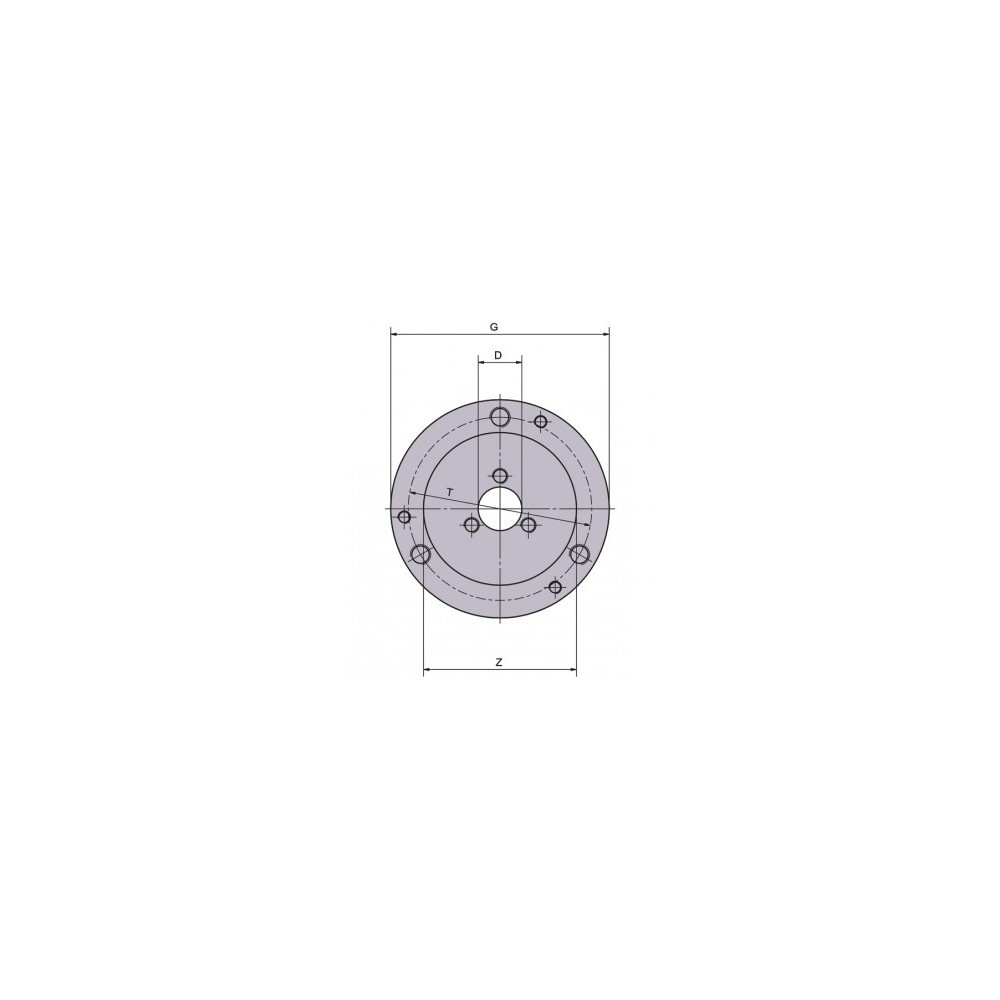

| Pitch circle Ø | 84 mm |
| Number of bores | 3x M8 |

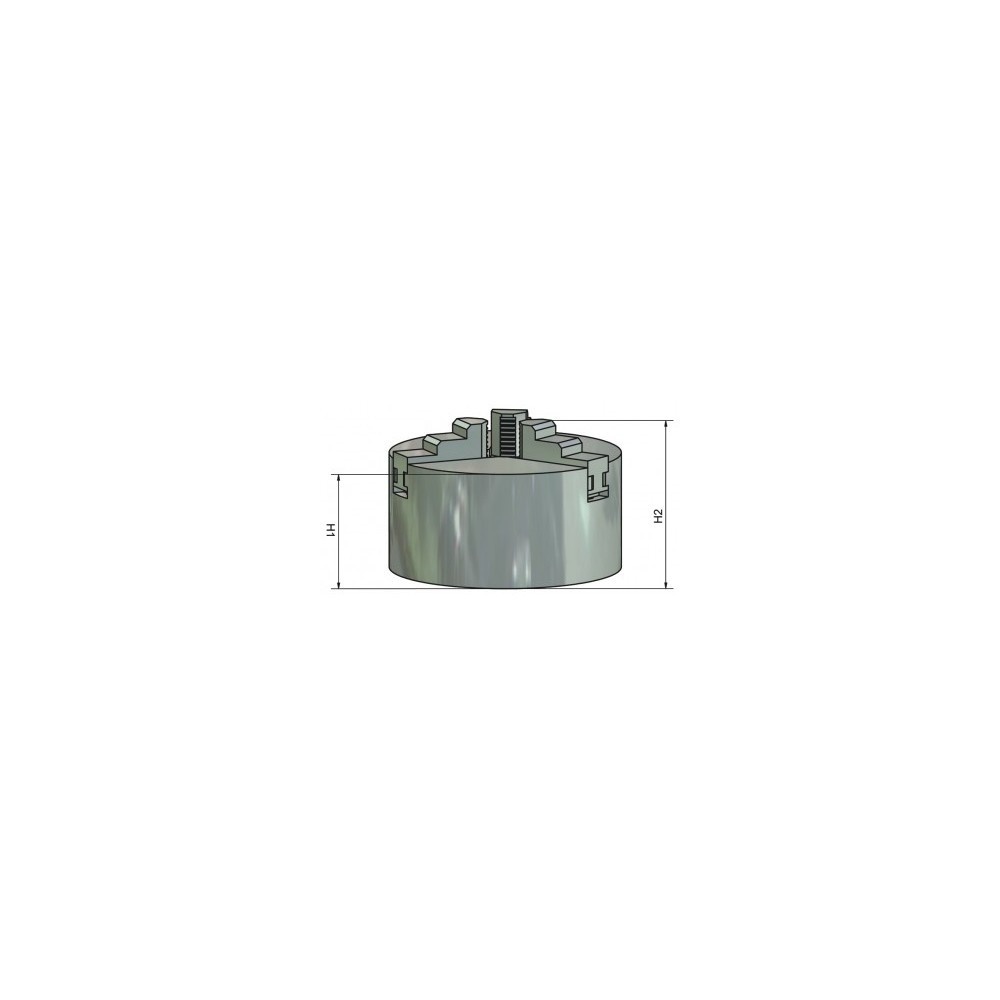

| Total height with jaws | 75 mm |
| Total height without jaws | 56 mm |
Detalii tehnice 10731
| Lathe chuck total Ø | 125 mm |
| Clamping Ø | 5.5 - 125 mm |
| max. speed | 3000 rpm |
| Bore | 30 mm |
| cylindrical inside diameter | 95 mm |
| Pitch circle Ø | 108 mm |
| Number of bores | 3x M8 |
| Total height with jaws | 85 mm |
| Total height without jaws | 59 mm |
Detalii tehnice 10753
| Lathe chuck total Ø | 160 mm |
| Clamping Ø | 3.0 - 160 mm |
| max. speed | 2500 rpm |
| Bore | 44 mm |
| cylindrical inside diameter | 130 mm |
| Pitch circle Ø | 142 mm |
| Number of bores | 3x M8 |
| Total height with jaws | 94 mm |
| Total height without jaws | 65 mm |
Detalii tehnice 10728
| Lathe chuck total Ø | 80 mm |
| Clamping Ø | 3.5 - 67 mm |
| max. speed | 4000 rpm |
| Bore | 16 mm |
| cylindrical inside diameter | 55 mm |
| Pitch circle Ø | 66 mm |
| Number of bores | 3x M6 |
| Total height with jaws | 67 mm |
| Total height without jaws | 50 mm |
